IV Tracks and IV Hangers
Overhead intravenous track systems are the safe, space saving alternative to the traditional floor drip-stand. This new system is getting popular in many hospitals all over the world.

The floor space around the bed is becoming overcrowded with equipments. This results in inefficient working practice, a higher risk of accidental damage. This may result in a low perceived quality of life for the patient, which may be unfavorable to the healing process.

The constant innovations in the medical therapy, adds lots of equipments, thereby demands more space around the patient.

By suspending items from above which would normally be free-standing, this will maximise floor space around the bed. Infusion equipment, including drip-bags and pumps, can be installed on the overhead track system simply and safely.

The provision is always at hand when needed, it cannot be knocked over, and it can be positioned exactly where required, even over the bed.

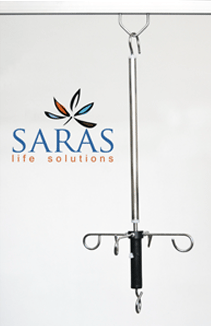

IV Hanger
Part Description Design Load
SIV 400 Heavy Duty IV Track 80 kg at each fixing point, therefore the capacity of The track is 80 kg x the number of fixings, with load evenly distributed. Fixings should be at 30 inch maximum. If point loads exceeding 25 kg (eg. Heavy equipment) are anticipated, fixing is recommended at 20 inch centers.
SLT- 2 Locking Trolley 40kg
STIV - 101 Telescopic (Iv hanger) Central hook: 8kg.
Folding hooks: 3kg each.
Total load: 20kg
SPC - 201 Pump Carrier 30kg
SIV - 200 Medium Duty IV Track 10kg at maximum span 2.5m
SIV – 2 2-point IV Carrier 6kg (3kg per hook)
SIV – 4 4-point IV Carriers 12kg (3kg per hook)
SIV – 5 5-point IV Carrier 15kg (3kg per hook)
SIV400 : Heavy-duty overhead intravenous track system
  • Heavy duty ceiling mounted track in aluminum anodized.
  • Heavy duty self-locking wheeled trolleys.
  • Five point telescopic IV Hangers.
  • Pump carriers for syringe and infusion pumps.
  • Cable management option.

Specifications

SIV400 Overhead intravenous track system as manufactured by Saras Life Solutions. Heavy-duty, anodized aluminum track, ceiling-fixed in accordance with manufacturers instructions. Telescopic intravenous carrier trees and pump carriers to be suspended from self-locking wheeled trolleys mounted within the track.
Heavy-duty overhead intravenous track system

SIV400 track is a very strong and rigid aluminum extrusion with a anodized finish. It is usually fixed directly to the ceiling, although it may be suspended if the ceiling height is over 3m. Locking trolleys run smoothly and quietly within the track section on wheels. When a Tele IV hanger or pump carrier is suspended from a locking trolley, the trolley will automatically lock into position on the track to prevent accidental movement. IV hanger are available in four sizes to suit a range of track heights. All are telescopic, with a simple release adjustment for accurate height control of the five stainless-steel hooks. Pump carriers have a 20mm diameter pole to which syringe and infusion pumps may be clamped.

They can be used alone for syringe pumps,or positioned alongside a carrier tree for infusion use, and with a load capacity of 30kg will take up to four pumps with ease. The optional pump carrier with power supply solves the problem of cable management, supply cable routed to the top of the pump carrier and across to the wall at ceiling height.

SIV200
Specifications

SIV200 Overhead intravenous track system as manufactured by Saras Life Solutions. Extruded aluminum track with anodized finish to be suspended in accordance with manufacturers instructions. 2-point carriers to be suspended from track on nylon runners.

SIV200 track can be ceiling-fixed if required but is normally suspended at the standard cubicle track height. The track is a strong aluminum extrusion with a hygienic anodized finish.

SIV200 is very quick and simple to install. It is usually fixed to the existing cubicle curtain track using T-joints, and would only need extra suspension points where a long span is required. The 2-point carriers run on low-friction nylon runners in a channel within the track section and have two stainless steel hooks for drip bags, with a load capacity of 3kg per hook.
